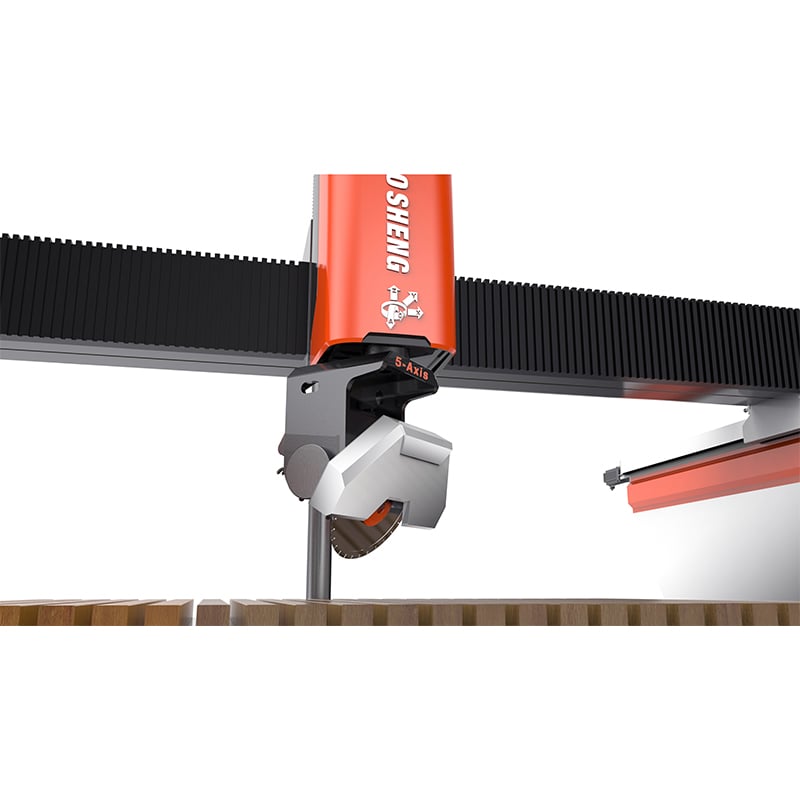

5 Axis Bridge Cutting Machine CS-Q3420-700



Technical Parameter
Equipment model CS-Q3420-700
Processing Size X:3400mm Y: 2000mm Z: 300mm
Z stroke 600mm
Machine overall size 6200mm*4000mm*4500mm
Steel structure Chaosheng welding and processing
Control system Cut CAM Ethercat-China
Table turning Angle 0-85°
Head rotation Angle 0-360°
Machine head chamfering Angle 0-360°
Empty running speed 20m/min
Blade diameter Max:700mm
Main motor power 22KW SNT Brand-China
Servo motor Veichi-China
Servo system Veichi-China
Ball screw Ball screw for Z axis  -TBI Taiwan
Linear and Rack Rack for X axis and Y axis -Hiwin
Main power 30KW
Inverter Veichi-China
Disconnector Schneider brand
Disconnecting switch Schneider brand
Contactor Schneider brand
Emergency stop button Siemens brand
Other accessories Pyun brand
System power supply MW brand
Water consumption 6m³/h
Gross weight ≈7000kg
Operating voltage 3P/380V/50Hz
Transformer N/A, Standard voltage
Frequence 50Hz
Paint Anti rust
Tool setter Automatic
Drilling N/A
Camera HIK VISION
Vacaum sucker N/A
Ambient temperature 0~45︒C

Industry and application

1. The thimble is specially customized for the turning machine, and a single head can carry 4 tons of stones.
2. A-axis servo motor: 5.5KW.
3. The saw blade motor is mounted on the rear of the machine, freeing up room on the left and right sides. It is quite powerful and can handle enormous amounts of chip depth at once.
